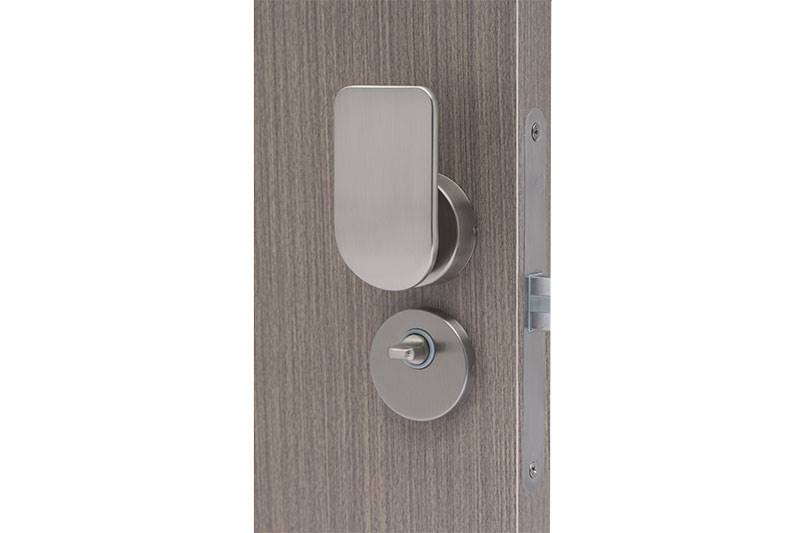

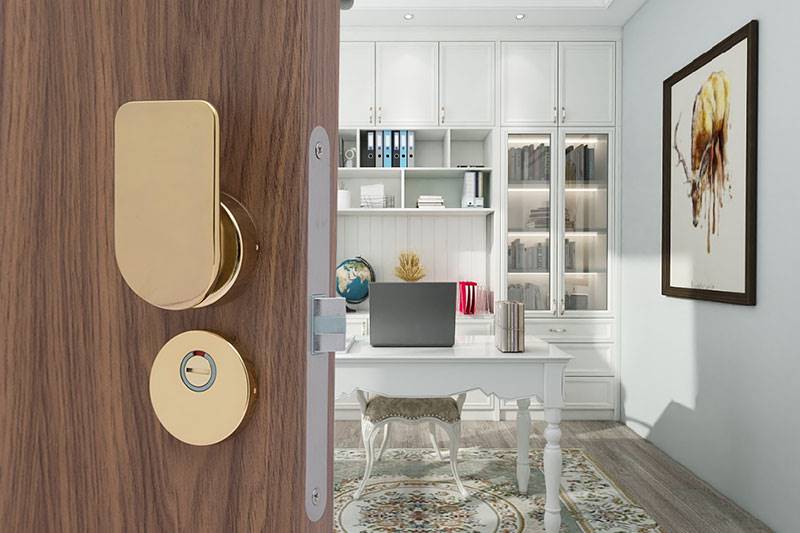

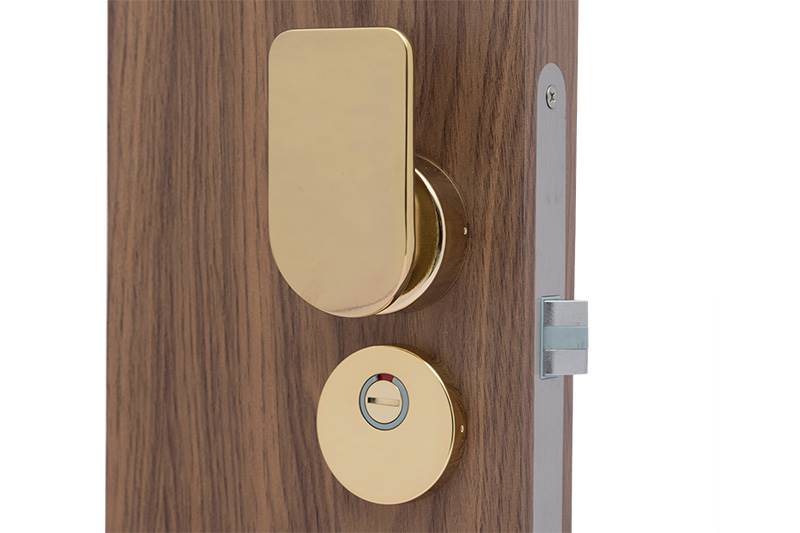

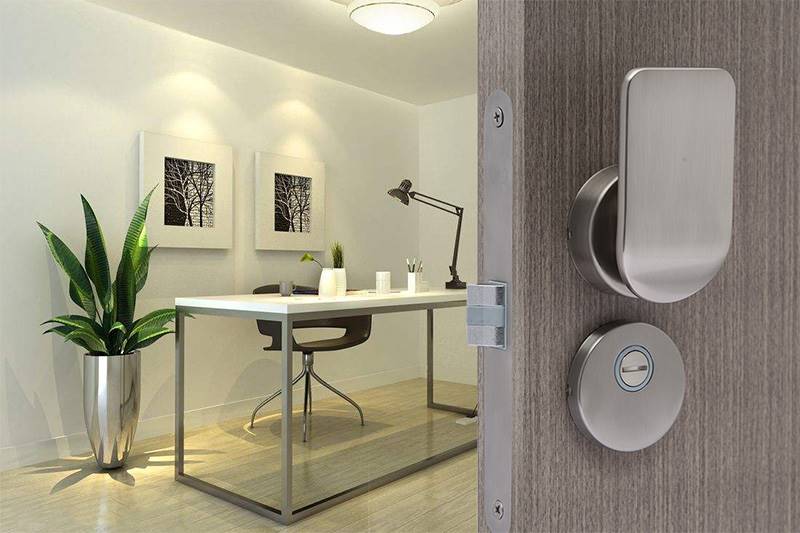

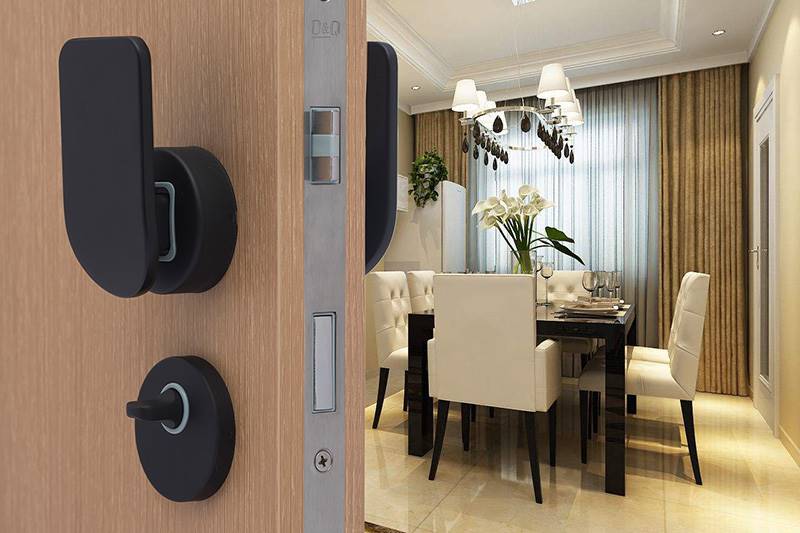

Push Pull Mortise Lock with Thumbturn
- Push pull mortise lock with thumbturn is designed without keys. The door can be locked by inside thumbturn and unlocked from outside using a coin. This design enables a quick unlock from the outside in case of an emergency when the door is locked from inside.
- Besides, the door’s switch status can be displayed on the door lock.
- Japanese advanced technology is adopted for surface treatment for better color adhesion and corrosion resistance.
Color

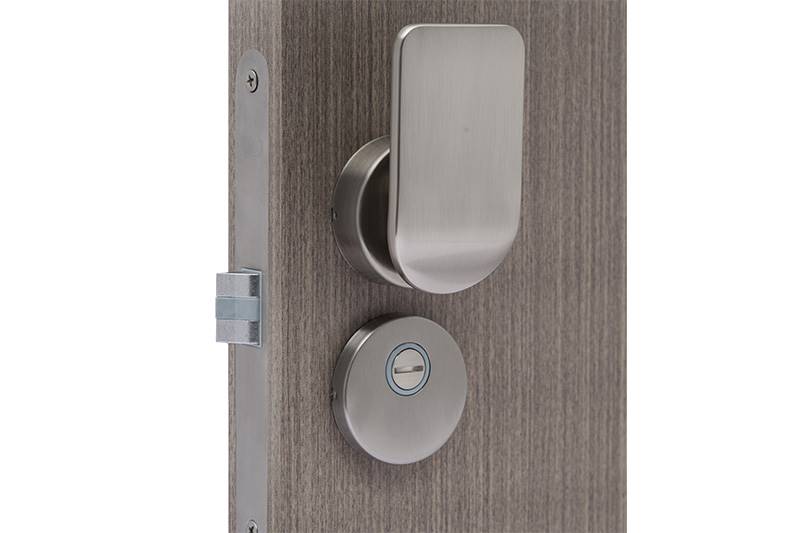

- Nickel plating

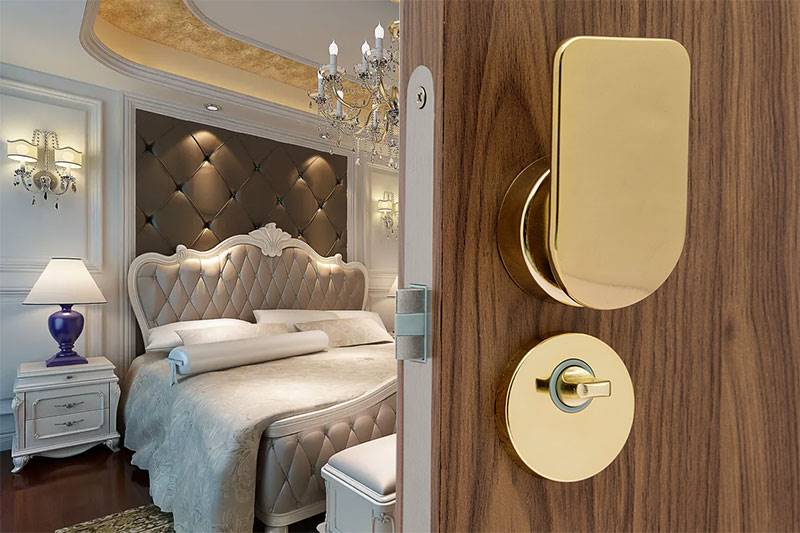

- Champagne gold
- Matte black
- Customized colors

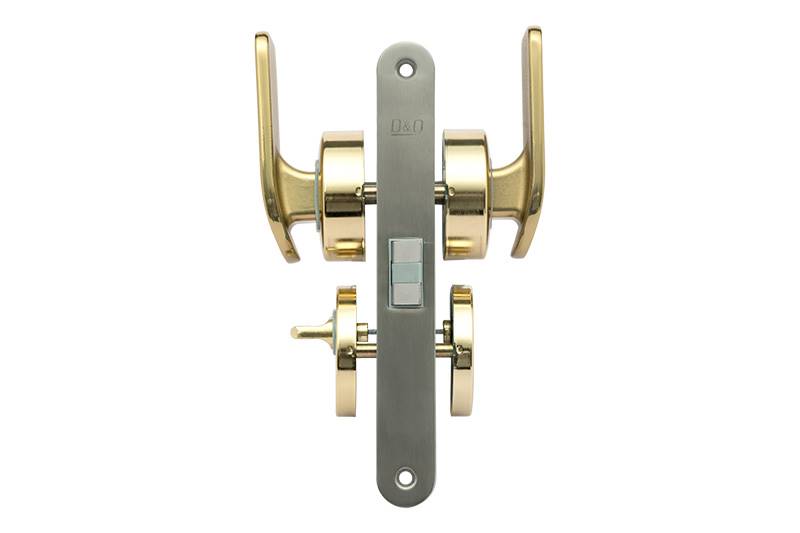

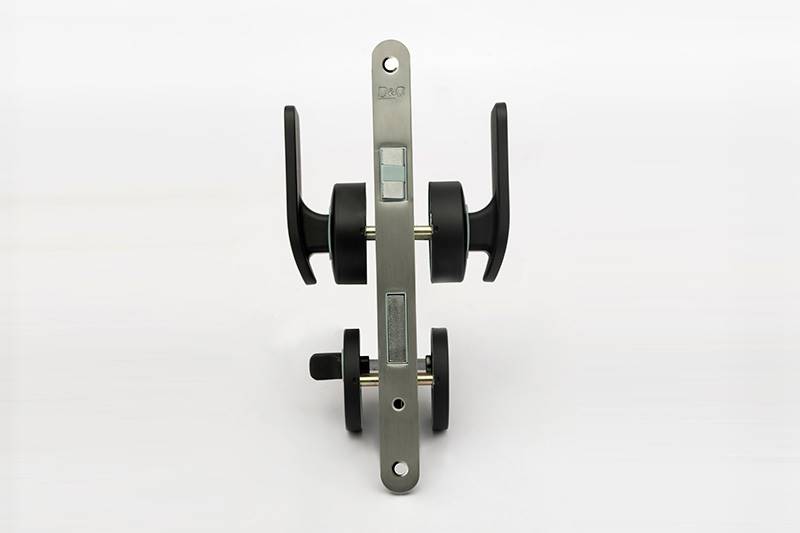

MG1813(ZY)-X
- Latchbolt is actuated by inside thumbturn and unlock from outside by using a coin.

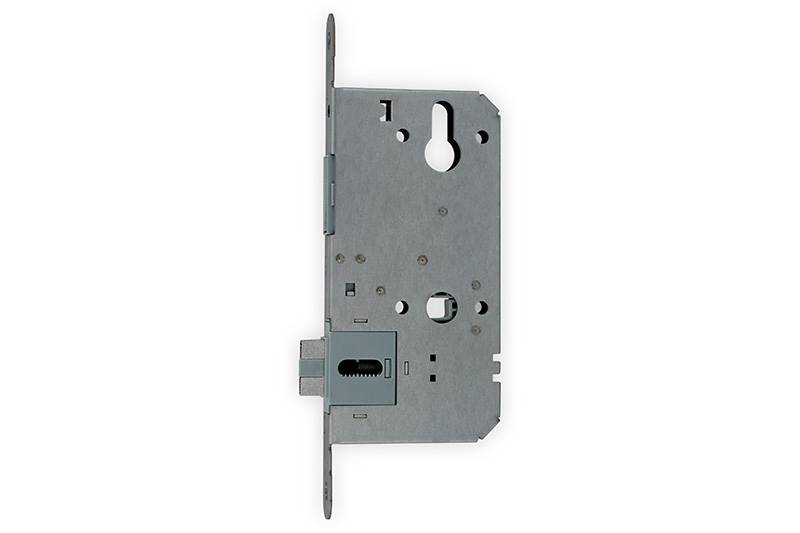

- Lock case: Galvanized zinc steel plate
- Lever handle: Aluminum alloy
- Bolt: POM and zinc alloy
- Axe distance: 72mm
- Backset: 55mm
- Center distance of the mounting hole: 38mm
- Door thickness: 33-50mm

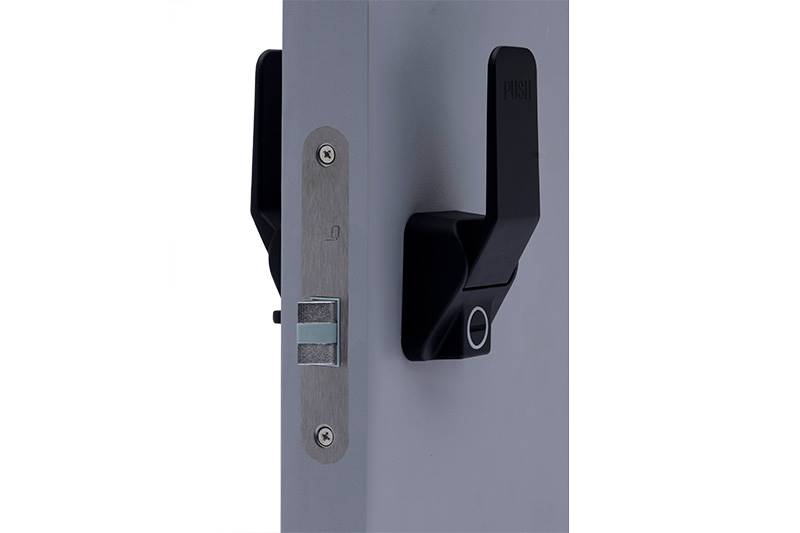

MG2812(ZY)-X

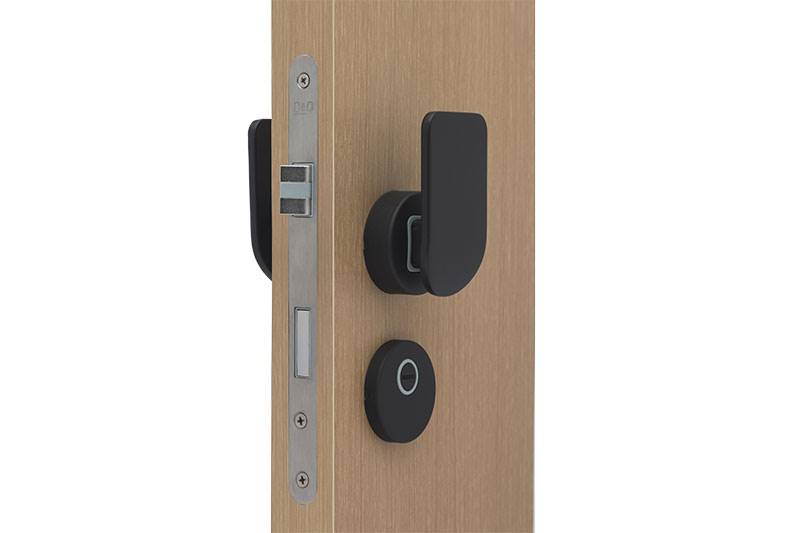

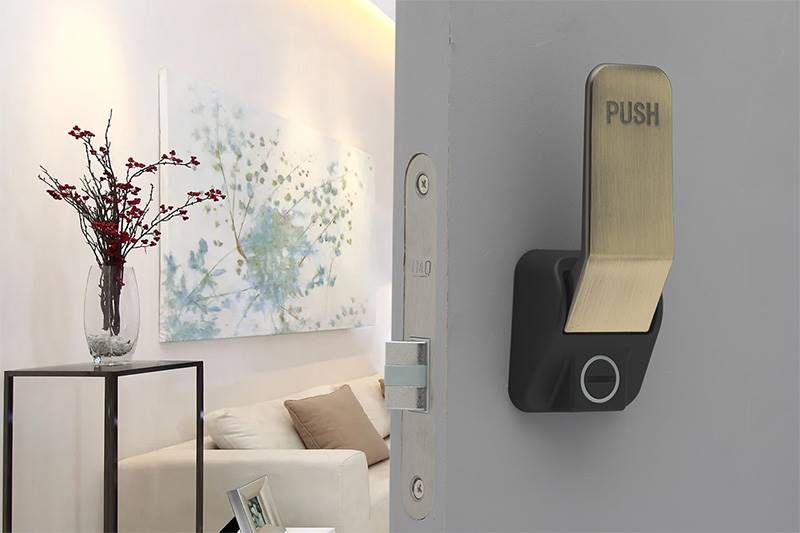

- Switching status of the door can be displayed on the outer panel.
- Lock case: POM
- Lever handle: Aluminum alloy
- Bolt: POM and zinc alloy
- Axe distance: 58mm
- Backset: 50mm
- Center distance of the mounting hole: 38mm
- Door thickness: 33-50mm

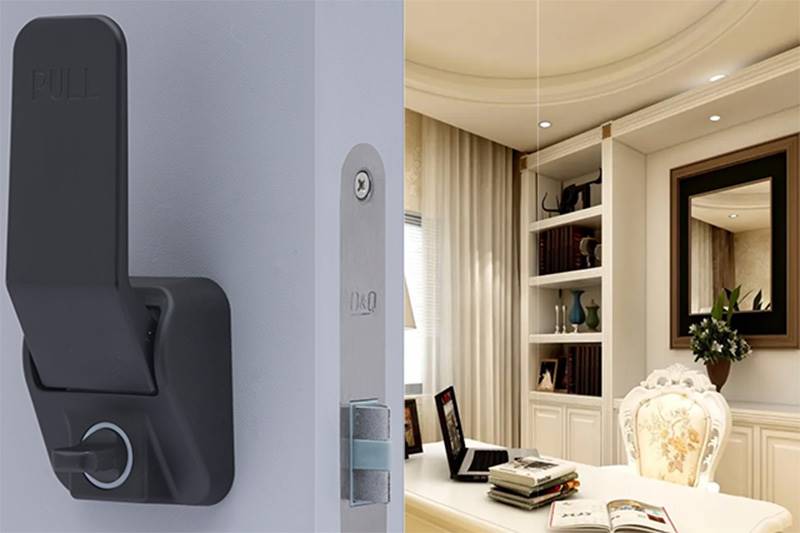

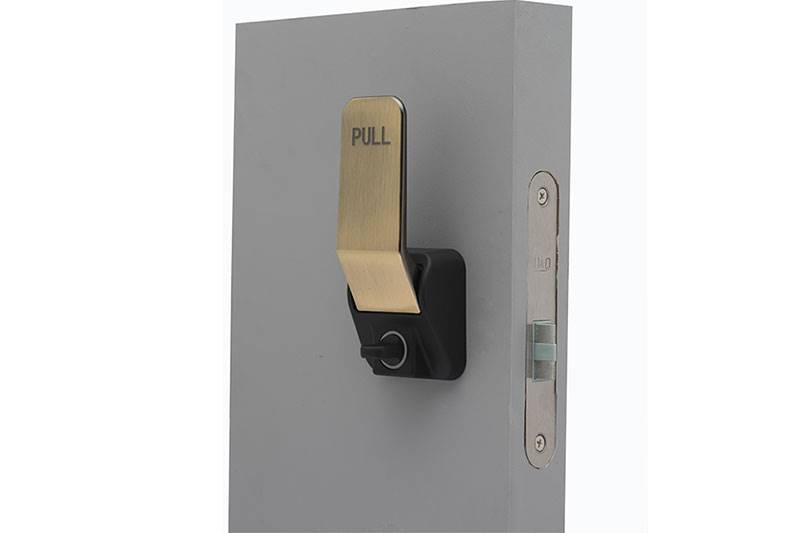

MG2813(ZY)-X
- Latchbolt is actuated by inside thumbturn and unlock from outside by using a coin.
- Lock case: POM
- Lever handle: Aluminum alloy
- Bolt: POM and zinc alloy
- Axe distance: 58mm
- Backset: 50mm
- Center distance of the mounting hole: 38mm
- Door thickness: 33-50mm
MG3813(ZF)-X
- Latchbolt is actuated by inside thumbturn and unlock from outside by using a coin.
- Lock case: POM
- Lever handle: Aluminum alloy
- Bolt: POM and zinc alloy
- Axe distance: 28mm
- Backset: 55mm
- Center distance of the mounting hole: 38mm
- Door thickness: 33-50mm
