Mortise lock handle/Mortise Lever Lock

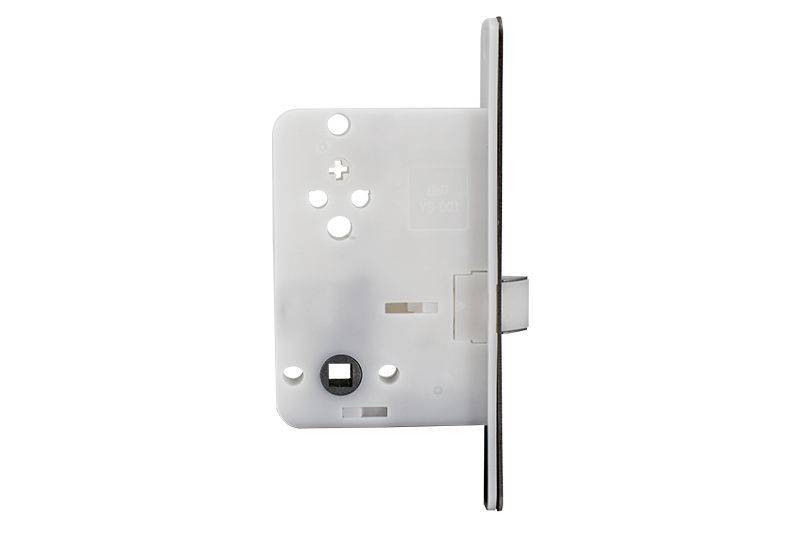

Various functions of mortise lever door lock provide you a wide of variety of choices. Compared with the torsion spring in the lock body of the traditional door locks, our locks adopt the compression spring structure, which can bear the frequency of locking/unlocking up to tens of millions of times. All the locks undergo various tests in accordance with Japanese JIS standards, including 96-hour salt spray test, acid and alkali resistance test, adhesion test after water boiling and hardness test to ensure the durability of appearance. OEM mortise lever lock orders are welcome.

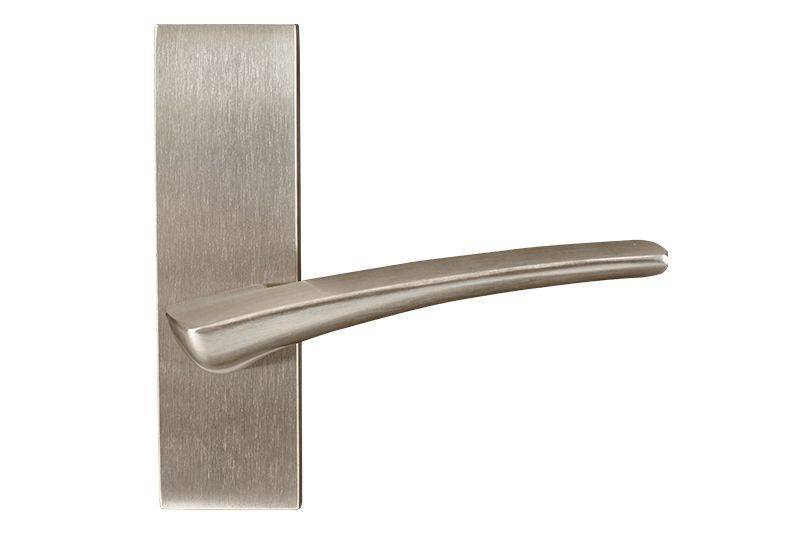

MPF1611(NS)-X

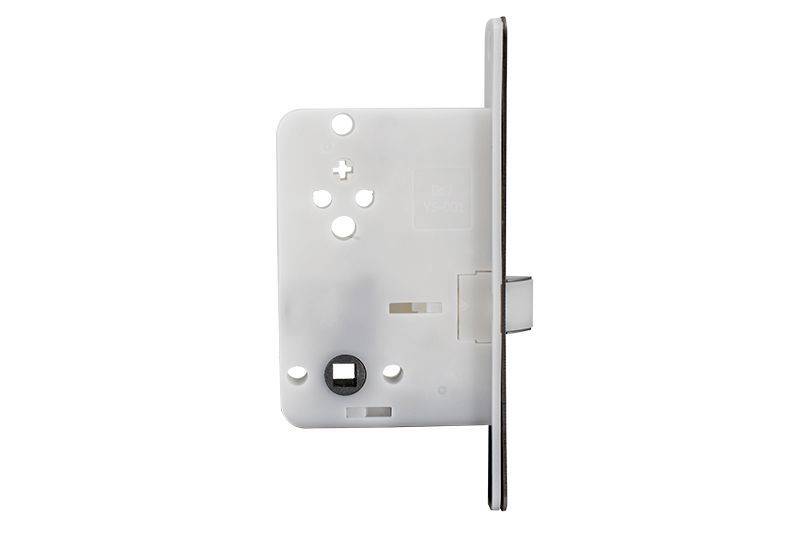

- Lock case: POM
- Bolt: POM and stainless steel
- Lever handle: Aluminum alloy
- Axe distance: 64mm
- Backset: 50mm
- Center distance of the mounting hole: 30mm
- Door thickness: 33-45mm

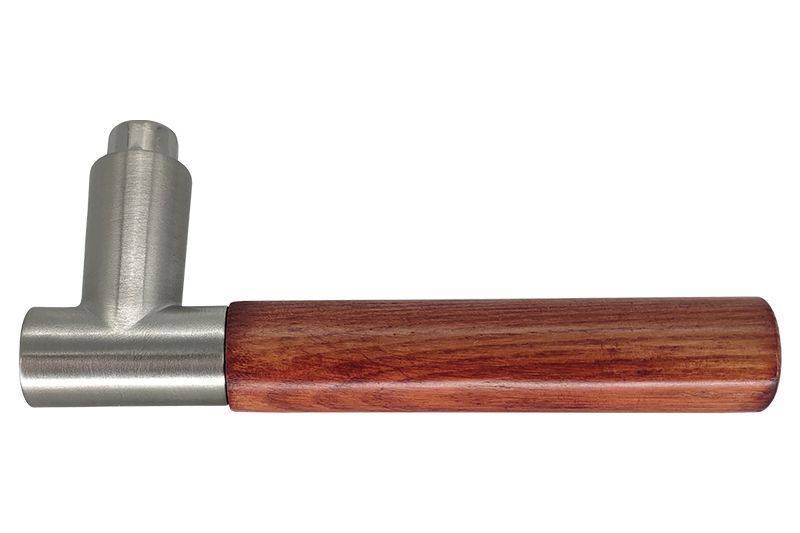

MPD1611(EW)-X
- Lock case: POM
- Bolt: POM and stainless steel

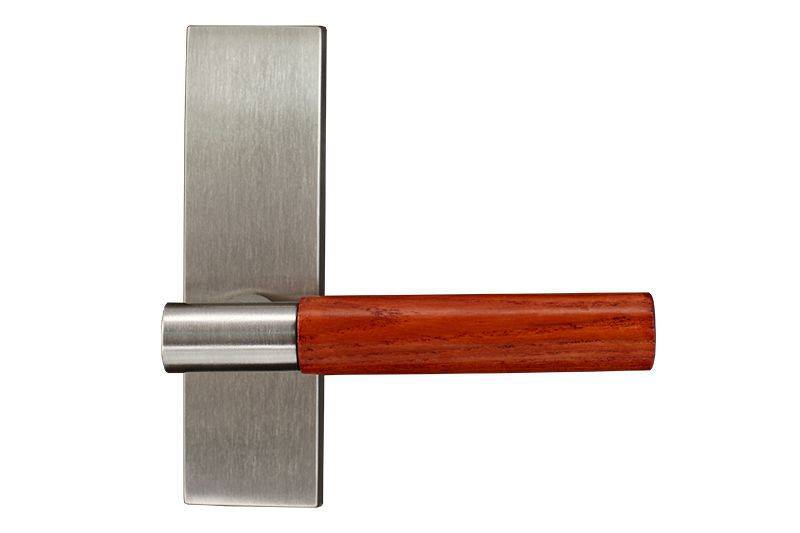

- Lever handle: Aluminum alloy, rosewood (the wood material is customizable)
- Axe distance: 46mm
- Backset: 50mm
- Center distance of the mounting hole: 118mm
- Door thickness: 33-42mm
MPD1611(KU)-X
- Lock case: POM
- Bolt: POM and stainless steel
- Lever handle: aluminum alloy
- Axe distance: 46mm
- Backset: 50mm
- Center distance of the mounting hole: 118mm
- Door thickness: 33-42mm
MPF1611(BA)-X
- Lock case: POM
- Bolt: POM and stainless steel
- Lever handle: Aluminum alloy
- Axe distance: 64mm
- Backset: 50mm
- Center distance of the mounting hole: 30mm
- Door thickness: 33-45mm
MPD1612(GG)-X
- The status of the door can be displayed.
- Lock case: POM
- Lever handle: Aluminum alloy
- Bolt: POM and stainless steel
- Axe distance: 46mm
- Backset: 50mm
- Center distance of the mounting hole: 118mm
- Door thickness: 33-42mm
MPF1613(NW)-X
- Lock the door by inside thumbturn and unlock from the outside by using a coin.
- Lock case: POM
- Lever handle: Aluminum alloy, rosewood (The wood material can be customized)
- Bolt: POM and stainless steel
- Axe distance: 64mm
- Backset: 50mm
- Center distance of the mounting hole: 30mm
- Door thickness: 33-45mm
MPD1613(XA)-X
- Lock the door by inside thumbturn and unlock from the outside by using a coin.
- Lock case: POM
- Lever handle: Aluminum alloy
- Bolt: POM and stainless steel
- Axe distance: 46mm
- Backset: 50mm
- Center distance of the mounting hole: 118mm
- Door thickness: 33-42mm
MPF1612(BA)-X
- The status of the door can be displayed.
- Lock case: POM
- Lever handle: Aluminum alloy
- Bolt: POM and stainless steel
- Axe distance: 64mm
- Backset: 50mm
- Center distance of the mounting hole: 30mm
- Door thickness: 33-45mm
MPD1612(NW)-X
- The status of the door can be displayed.
- Lock case: POM
- Lever handle: Aluminum alloy, rosewood (The wood material can be customized)
- Bolt: POM and stainless steel
- Axe distance: 46mm
- Backset: 50mm
- Center distance of the mounting hole: 118mm
- Door thickness: 33-42mm
MPN1612(NT)-X
- The status of the door can be displayed.
- Lock case: POM
- Lever handle: Aluminum alloy, rosewood (The wood material can be customized)
- Bolt: POM and stainless steel
- Axe distance: 64mm
- Backset: 50mm
- Center distance of the mounting hole: 30mm
- Door thickness: 33-42mm
MPD1613(NW)-X
- Lock the door by inside thumbturn and unlock from the outside by using a coin.
- Lock case: POM
- Lever handle: Aluminum alloy, rosewood (The wood material can be customized)
- Bolt: POM and stainless steel
- Axe distance: 46mm
- Backset: 50mm
- Center distance of the mounting hole: 118mm
- Door thickness: 33-42mm
MPF1613(NS)-X
- Lock the door by inside thumbturn and unlock from the outside by using a coin.
- Lock case: POM
- Lever handle: Aluminum alloy
- Bolt: POM and stainless steel
- Axe distance: 64mm
- Backset: 50mm
- Center distance of the mounting hole: 30mm
- Door thickness: 33-45mm
MPF1613(XA)-X
- Lock the door by inside thumbturn and unlock from the outside by using a coin.
- Lock case: POM
- Lever handle: Aluminum alloy
- Bolt: POM and stainless steel
- Axe distance: 64mm
- Backset: 50mm
- Center distance of the mounting hole: 30mm
- Door thickness: 33-45mm
MPD1612(NS)-X
- The status of the door can be displayed.
- Lock case: POM
- Lever handle: Aluminum alloy
- Bolt: POM and stainless steel
- Axe distance: 46mm
- Backset: 50mm
- Center distance of the mounting hole: 118mm
- Door thickness: 33-42mm
MPD1614(NS)-X
- Lock case: POM
- Handle: Aluminum alloy
- Bolt: POM and stainless steel
- Axe distance: 46mm
- Backset: 50mm
- Center distance of the mounting hole: 118mm
- Applicable door thickness: 33-42mm
MPF1614(BA)-X
- Lock case: POM
- Handle: Aluminum alloy
- Bolt: POM and stainless steel
- Axe distance: 64mm
- Backset: 50mm
- Center distance of the mounting hole: 30mm
- Applicable door thickness: 33-45mm
MPD1614(XA)-X
- Lock case: POM
- Handle: Aluminum alloy
- Bolt: POM and stainless steel
- Axe distance: 46mm
- Backset: 50mm
- Center distance of the mounting hole: 118mm
- Applicable door thickness: 33-42mm
MPF1614(EW)-X
- Lock case: POM
- Handle: Aluminum alloy, rosewood (The wood material can be customized)
- Bolt: POM and stainless steel
- Axe distance: 64mm
- Backset: 50mm
- Center distance of the mounting hole: 30mm
- Applicable door thickness: 33-45mm
MPF1614(NW)-X
- Lock case: POM
- Handle: Aluminum alloy, rosewood (The wood material can be customized)
- Bolt: POM and stainless steel
- Axe distance: 64mm
- Backset: 50mm
- Center distance of the mounting hole: 30mm
- Applicable door thickness: 33-45mm
